FULL PANORAMIC
Home / Full Panoramic Courts

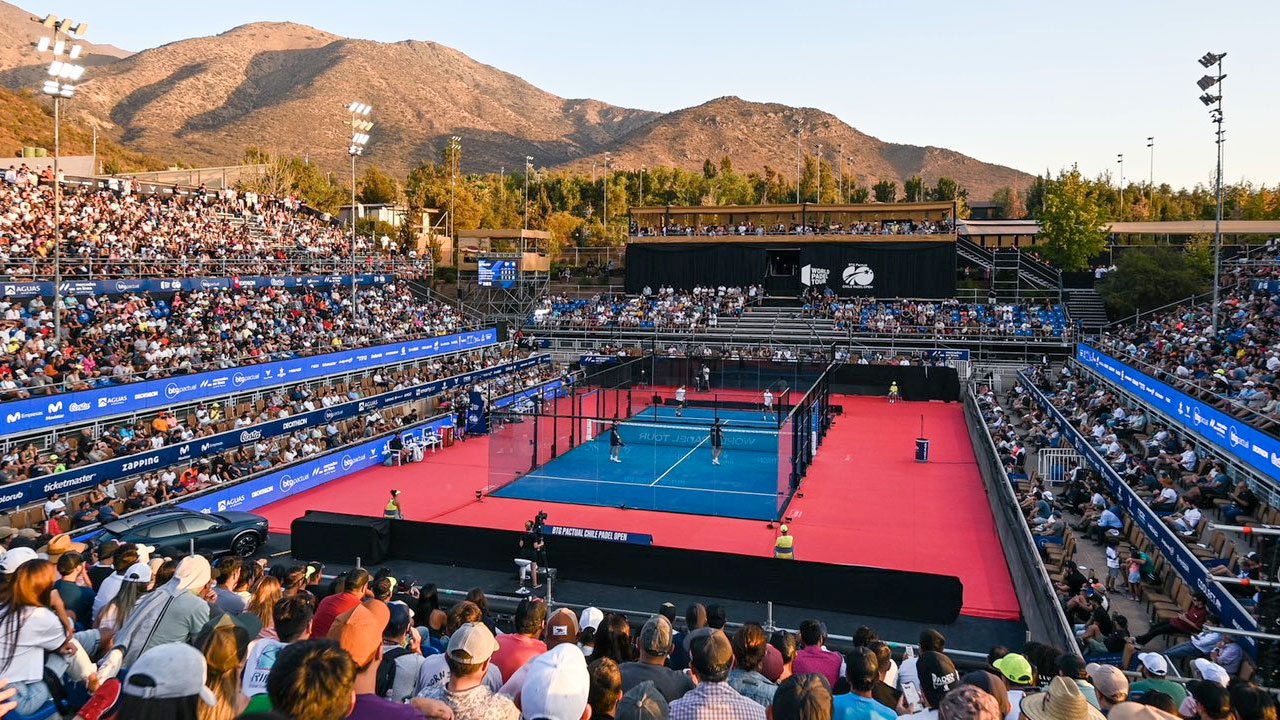

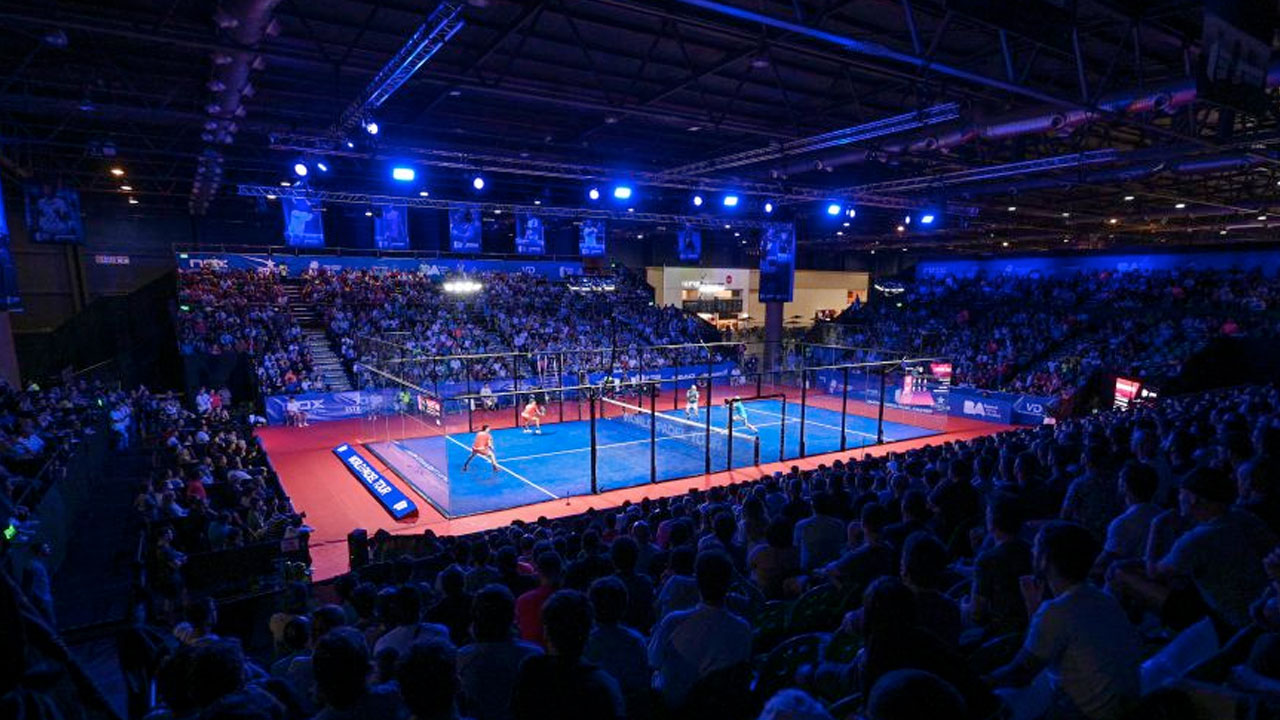

The Full Panoramic Reebok Padel Court has been the centerpiece of several of the most important tournaments and exhibitions worldwide due to its elegance and sturdiness. With no structural elements obstructing the glass areas, the court offers spectacular interior and exterior views for both players and spectators.
In addition to adapting to all environments and locations, the court also provides a perfect panoramic view for televised matches.
Our courts are suitable for both outdoor and indoor installations and are ideal for sports clubs with high player and audience attendance.
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Size
Width: 10 mts.
Length: 20 mts.
Pillar & Mesh
Pilliar: Q235 Steel square tube. 4 pcs light pillar with 100×50×3mm, no corner pillar and fence frame pillar.
Frame: Q235 steel plate with size 2000×3000mm and thickness of 5mm.
Mesh: mesh diameter 4 mm (double mesh),
mesh distance 50 x 50 mm.
Beams: Aluminium with upper beam and bottom beam around the whole court.
Door height: 2.2 m height with WPT standard.
Tempered Glass
Tempered glass with 12mm thickness with
standard EN12150-2:2004
18pcs of 1996×3000mm
Artificial Grass
Color: Blue + White
Structure / Profile: 6 fibers
Composition (ISO 11357): PE
Dtex (ASTM D1907): 9000
Thickness (ASTM D3218): Diamond 230 μm, stem 280 μm ±10%
Fiber width: 0.9 mm ±10%
Total Dtex (ASTM D1907): 9000
UV Effects (ISO 4892): Grey scale 4–5, no visual changes
Melting point (ASTM D789): 100
Fire resistance test (EN 13501): Cfl-s1
Tensile strength (ASTM D2256): ≥ 110N
CARPET SPECIFICATIONS
Turf:
Height (ISO 2459): 12mm ±1%
Gauge (ASTM D5793): 3/16”
Fibers per tuft: 6
Stitch type (fabric): Textured (crimped)
Stitches per 10 cm: 28 ±5%
Stitches per meter: 280 ±5%
Stitches per m² (ISO 1763): 58,800 ±100
Total pile weight (ISO 2549): 1803.06 g/m² ±5%
Backing:
Primary backing material: Double-layer PP
Coating material: PU latex
Weight (ASTM D5848): 200 g/m²
Weight (ASTM D5848): 800 g/m² ±5%
Total backing weight: 10000 g/m²
Total carpet weight (ASTM D5848): 2803.06 g/m²
±100 g
Turf withdrawal strength (ISO 4949:2012): ≥ 40N
Water permeability (EN 12616): ≥ 2000 mm/hr
INFILL MATERIALS
Silica sand
Particle size: 0.2 – 1.8 mm
Quantity: 12–15 kg/m² (Variable depending on project)
LED Light
Led light: 4 lighting towers with 6 pcs each!
Led light: 250 W / 250 Lux / IP65
LED Post
4 tubes with 3 meters high, fitting with trim and tube up to 6 meters.
Net
Nylon
Net Pole
Post: Q235 steel tube
Size: 100 x 50 mm
Components
Stainless Steel 304
Rubber pad, Bolt Glass fitting, Etc.
Price
To know the price of the Full Panoramic model, you need to request a quote. Contact us and we will prepare a personalized estimate for you.
The Full Panoramic court is also available through a Renting option. The Renting system is a medium- to long-term lease of the court by a financial institution, with the possibility of owning the asset at the end of the contract (between 2 and 5 years).
